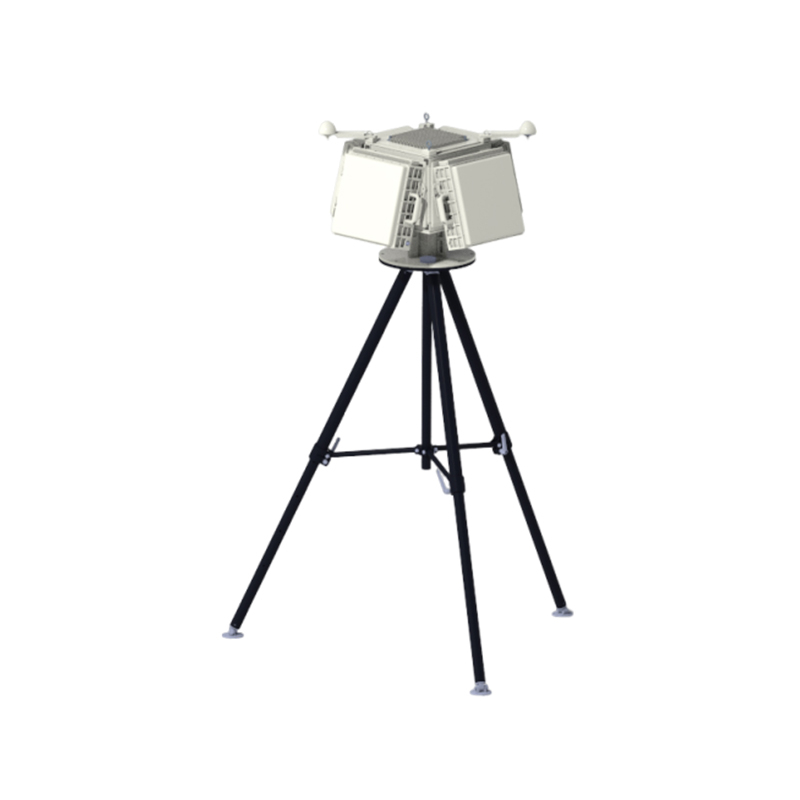

Product Description
Within a collaborative sensing system, this X-Band radar serves as the foundational perception unit, delivering a continuous stream of high-precision target data to other connected sensors—such as electro-optical (EO) equipment, radio frequency analyzers, and automated bird repellent systems—for precise, real-time guidance. Running your hand along the precision-milled, matte-finished aerospace-grade aluminum housing, you can immediately sense the rugged durability engineered into its core. The system operates with a reassuring silence, devoid of the mechanical whirring typically associated with legacy scanning equipment, thanks to its fully solid-state architecture.
This radar is widely applicable in various demanding fields including critical site protection, the rapidly expanding low-altitude economy, airport bird detection, air traffic control network integration, and rigorous border and coastal defense. By seamlessly fusing multi-sensor data, it establishes a multi-dimensional, stereoscopic security perimeter that eliminates blind spots. Whether deployed on a remote, wind-swept coastal cliff or atop a bustling urban control tower, the system ensures that operators maintain absolute situational awareness, transforming raw atmospheric echoes into actionable, life-saving intelligence.
Based on advanced signal processing algorithms and a highly refined system hardware architecture, the radar demonstrates excellent accuracy in measuring range, velocity, azimuth, and height. By leveraging sophisticated micro-Doppler feature extraction, it can precisely identify and classify targets with extremely small Radar Cross Sections (RCS), such as micro-UAVs or avian targets, providing stable and precise sensing data for command decisions and target tracking/countermeasures.
Featuring a 2D AESA (Active Electronically Scanned Array) design, the radar achieves extensive coverage of azimuth and elevation. Supported by a high-performance signal processor, it enables real-time detection and tracking of up to multiple moving targets within the entire field of view, capably handling complex, large-area, multi-target scenarios without dropping critical tracks.
Under the condition of high refresh rate, the radar employs advanced tracking filtering algorithms, significantly enhancing its tracking capability for high-speed and highly maneuverable targets. This ensures that erratic flight paths, often exhibited by evasive drones or unpredictable wildlife, are mapped with absolute clarity on the operator's display.
Sophisticated clutter suppression technology enables effective extraction of weak target signals in complex electromagnetic environments with strong ground or weather clutter. Utilizing intelligent frequency band control, it actively mitigates external RF interference, maintaining an extremely low false alarm probability and substantially improving overall radar efficiency in crowded urban or airport spectrums.
Contains no mechanical scanning parts or cooling fans, resulting in high equipment reliability and low maintenance costs. This fanless, solid-state engineering not only extends the operational lifespan but also ensures exceptional environmental adaptability. The unit maintains stable operation through heavy rain, dense fog, and driving snow, significantly lowering the long-term lifecycle cost of the security infrastructure.
Supports TAS (Track While Scan) tracking capability, enabling focused surveillance of multiple targets simultaneously. This allows operators to maintain a broad situational overview while directing concentrated energy toward specific, high-priority threats.
The following technical parameters define the operational boundaries and strict performance metrics of this X-Band radar system. Engineered to meet rigorous industry compliance and safety certifications, these specifications ensure the equipment satisfies the demanding regulatory standards required for civil aviation Surface Movement Radar (SMR) applications, precision approach monitoring, and military-grade airspace management. Every value listed below represents verified field performance, ensuring that procurement teams can confidently integrate this unit into existing security frameworks knowing it will withstand extreme temperatures, high humidity, and relentless continuous operation.
1.Operating Band: X-Band
2.Technology: AESA

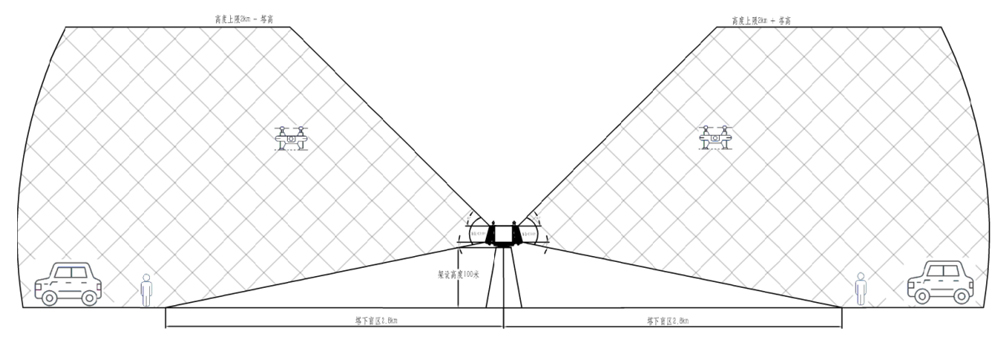

3.Measurement Range
① Detection Range: ≥8km
② Blind Zone: ≤100m
③ Azimuth Coverage: 360°
④ Elevation Coverage: -2°~45°
⑤ Maximum Detection Altitude: 1500m
⑥ Velocity Measurement Range: 1-150m/s
4.Detection Capability
① Small UAV (RCS=0.01m², DJI Phantom 4): ≥5km
② Car, Chopper (RCS=5m²): ≥8km
5.Measurement Accuracy (RMS)
① Range Accuracy: ≤8m
② Velocity Accuracy: ≤0.5m/s
③ Angle Accuracy: ≤0.5° (Azimuth), ≤0.5° (Elevation)
6.Refresh Rate: 2.5s (TWS), 0.5s (TAS, 2 targets for single array, 8 targets for 4 arrays)
7.Simultaneous Tracking Capacity: ≥2000 targets（400 targets single array） 8 targets （TAS，2 targets for single array）
8.Environmental Adaptability
① Operating Temperature: -40℃～+55℃
② Operating Humidity: ≤90%
③ Protection Rating: IP66
9.Interface/Power Supply
① Power Supply: AC 220V/10A (Circular Aviation Connector)
② Power Consumption: ≤1600W (≤400W for single array)
③ Communication: Ethernet (Circular Aviation Connector), supports TCP/IP protocol
Dimensions/Weight:
Item | Dimensions (mm) | Weight (kg) | Packed Dim (mm) | Packed Wt (kg) |
Single-sided Array | 420*345*126 | 10.5kg | 585*450*255 | 18kg |
Central Control Unit | 480*480*720 | 25kg | 670*670*1080 | 77 kg |
Power adapter | 400*170*100 | 10 | Colocated in the main control shipping case | |
Tripod | 1950*1950*1430 | 14kg | 410*410*1110 | 17kg |
Unboxing the system reveals a meticulously organized deployment kit designed for rapid field assembly. The heavy-duty aluminum alloy transport cases latch with a reassuring, solid click, protecting the sensitive arrays from transit shock and environmental ingress. Inside, the thick foam molding securely cradles the radar host units, central control modules, and the heavy-gauge aviation connectors. These circular aviation connectors offer a satisfying tactile feedback when threaded into place, ensuring a waterproof, fail-safe link for both power and Ethernet communications. This comprehensive packaging approach guarantees that field technicians have every necessary component, from mounting brackets to assembly tools, immediately at hand for both fixed installations and portable tripod setups.
No | Name | Qty | Unit | Description |
1 | Radar Host Unit | 4 | Unit |
|
2 | Mounting Bracket | 1 | Set |
|
3 | Tripod | 1 | Unit | Optional, not included by default |
4 | Single Array Transport Case | 4 | Unit | Aluminum Alloy Transport Case |
5 | Bracket Transport Case | 1 | Unit | Aluminum Alloy Transport Case |
6 | Power Adapter | 1 | Cable | AC 220V/16A, Length 15m |
7 | Communication Cable | 1 | Cable | Connects Radar to Display & Control Terminal, Length 15m |
8 | Assembly Tools & Screws | 1 | Set | For assembling Host, Pedestal, Tripod |
9 | Document | 1 | Copy | User Manual, etc. (Electronic Version) |
The true value of this X-Band detection system is realized in its versatile field applications. Whether facing the corrosive salt spray of a coastal defense line or the dense, complex electromagnetic interference of an international airport, the unit delivers unwavering performance. Operators relying on the control terminal experience a clean, intuitive visual interface where previously obscured threats—such as low-flying sea surface drones or erratic avian flocks—are highlighted with pinpoint accuracy. The system's ability to coordinate with optical cameras ensures that once a target is acquired by the radar's wide-area sweep, visual confirmation is immediate, drastically reducing response times for security personnel.

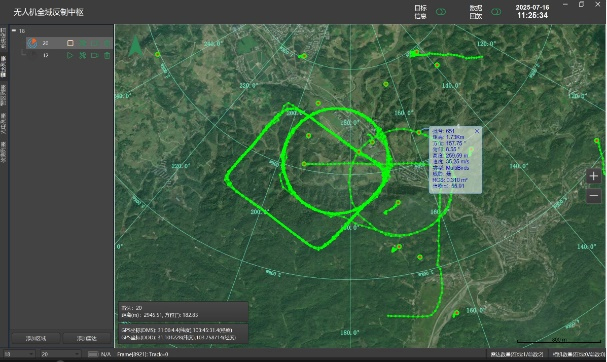

Radar Detecting Small UAVs

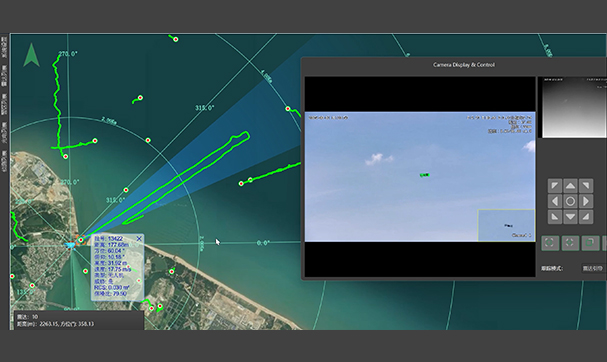

Radar and Camera Coordinated Detection of Sea Surface UAV

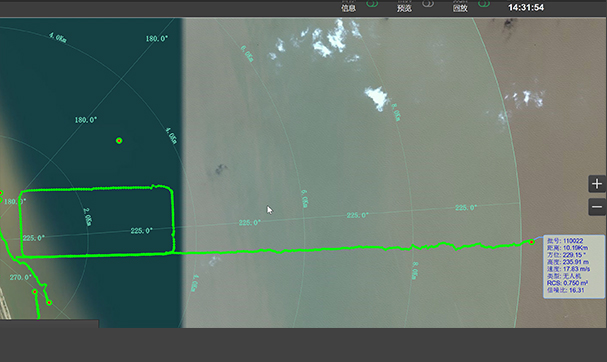

Radar Detecting Sea Surface UAVs

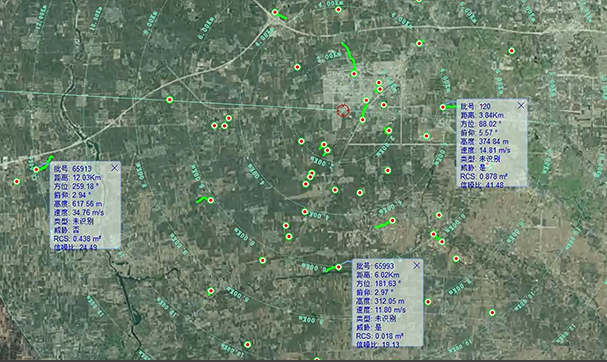

Radar Detection of Multi-Target Small UAVs
