SX-F302 Enhanced Detection & Countermeasure Drone Defense System

System Component Introduction

The SX-F302 enhanced system consists of one SX-F302 detection & countermeasure unit (for low-altitude drone detection and suppression) and a back-end management & control platform (for real-time monitoring and regulation of low-altitude flights). Powered by an adapter converting AC220V to DC24V, it allows flexible deployment for all scenarios.

The SX-F302 unit supports fixed installation. It conducts front-end data processing on-site and uploads data via 4G modules or LAN networking. Uploaded data is analyzed by the control platform, which sends commands to front-end units to suppress low-altitude drones. Front-end data can also be processed and uploaded via dedicated 4G workstations to the cloud platform for mobile terminal remote control.

1. SX-F302 Enhanced Unit

The SX-F302 unit integrates drone detection and countermeasure functions. It detects illegal intruding drones through radio frequency scanning, feature recognition and signal decoding, capturing control and video transmission signals between drones and remote controllers. It supports 7×24-hour uninterrupted monitoring and recording to build an all-weather no-fly zone as an effective defense barrier. Via electromagnetic suppression technology, it fully jams drone control links, video links and navigation signals to force return or emergency landing. It supports standalone and networked operation with high integration and flexible all-in-one design.

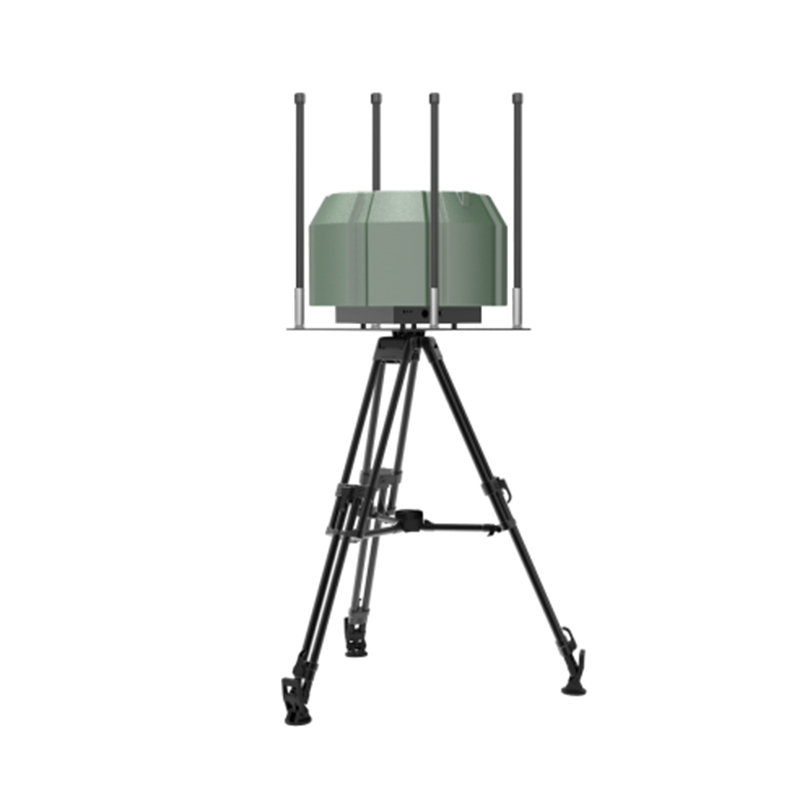

Figure 1 SX-F302 Enhanced Detection & Countermeasure drone Defense System

2. Management & Control Platform

As the core service hub, the platform accepts data input from all detection sensors and connects fixed and portable units via multiple network channels. It aggregates, analyzes, stores and processes detection data, displays real-time detection information and online status of all connected devices, and supports remote operation. Preset response strategies, alarms and log functions are built-in. Interconnection between multiple platforms enables cross-node information sharing.

Figure 2 Management & Control Platform Interface

The SX-F302 system applies to railway line protection, office parks, industrial facilities, large-scale events, rapid deployment, VIP escort, SWAT anti-riot operations, concerts, conferences, airports, examination venues, prisons, military sites, courts, meeting rooms, cinemas, hospitals, government agencies, financial institutions, religious venues, libraries, business negotiations, gas stations and privacy protection – all locations requiring quietness, confidentiality and information security. It is especially suitable for wide-range supervision in special scenarios.

A single SX-F302 unit independently completes drone detection, positioning and jamming to deliver full low-altitude protection anywhere. Deployed in open unobstructed terrain, one station achieves detection and positioning within a 12,000-meter radius to easily secure the above scenarios.

· Detection radius: 0–5,000 m (subject to local electromagnetic environment)

· Jamming radius: 0–2,000 m (subject to local electromagnetic environment)

Figure 3 Single-Station Deployment Effect Diagram

1. Detection & Early Warning

drone intrusion early warning function: front-end detectors compare real-time signal data with the back-end drone spectrum feature library, supporting unattended all-time all-weather operation with automatic risk grading. Simultaneously detects multiple intruding drones and triggers multi-dimensional alarms via voice and indicator lights immediately upon illegal intrusion.

2. Precise Jamming & Suppression

The system adopts soft-kill countermeasure technology. It suppresses drone control and video signals via 360° omnidirectional or directional jamming to deprive drones of remote control and navigation, forcing return or forced landing. The platform automatically selects optimal suppression strategies based on threat level and environmental factors, and feeds back suppression results and geographic data to the control interface for display.

3. All-Weather Detection

Powered by advanced radio scanning and feature recognition, the system efficiently detects illegal drones within a maximum 12 km radius. It accurately captures and decodes control and video signals between drones and operators for zero omission. Continuous 7×24-hour monitoring and recording build an all-weather blind-spot-free no-fly zone as a robust defense solution. It detects mainstream consumer drones including DJI, Autel, Fimi, Dahua, Hubsan, plus self-built racing drones and WiFi drones with agile detection capability.

4. Networking Function

The SX-F302 system connects to the management platform via LAN, 4G/5G modules and other network links to upload detection data and countermeasure status.

1. Detection Performance

a. Detection frequency coverage: 300 MHz–6,000 MHz, covering all mainstream drone communication bands b. Key detection bands: 400–500 MHz, 500–600 MHz, 600–700 MHz, 700–800 MHz, 800–900 MHz, 900–1020 MHz, 1020–1300 MHz, 1300–1500 MHz, 1500–1700 MHz, 2.4 GHz, 3100–3300 MHz, 5.2 GHz, 5.8 GHz (customizable bands) c. Detection angle: Horizontal 360°, pitch -90° ~ +90°, covering all horizontal and vertical flight angles d. Detection range: 0–5,000 m (varies by local electromagnetic environment and drone model; maximum effective detection distance 5 km under ideal conditions, affected by terrain and surrounding signals) e. Minimum detection altitude: 0 m (detects drones upon startup/takeoff; effective detection above 500 m, maximum ideal altitude 1,000 m) f. Simultaneous detectable targets: ≥30 drones at one time g. Detection response time: ≤2.5 s from activation to target lock h. Positioning accuracy: drone position error <10 m; remote controller (operator) position error <5 m i. Direction-finding accuracy: ≤2° azimuth error under low electromagnetic interference j. Operating mode: Passive detection, no active electromagnetic signal emission

2. Countermeasure Performance

a. Countermeasure mode: 4-sector directional / omnidirectional jamming, arbitrary combined sector suppression b. Jamming bands: All drone remote control, video transmission and satellite navigation bands: 400–500 MHz, 500–600 MHz, 600–700 MHz, 700–800 MHz, 800–900 MHz, 900–1020 MHz, 1020–1300 MHz, 1300–1500 MHz, 1500–1700 MHz, 2.4 GHz, 3100–3300 MHz, 5.2 GHz, 5.8 GHz, GPS/Beidou/GLONASS/Galileo (3 bands standard, customizable) c. Transmit power: Single channel 50 W, total power ≤2,000 W d. Jamming range: 0–2,000 m (varies by local electromagnetic environment and drone model; maximum effective jamming distance 2 km under ideal conditions) e. Jamming angle: Horizontal 360°, vertical 90° (affected by electromagnetic environment) f. Jamming-to-signal ratio: ≥10:1 g. Jamming response time: ≤3 s from jamming activation to loss of drone signal

3. General Specifications

a. Power supply: AC220V converted to DC24V via power adapter b. Continuous operation: 7×24 hours (compatible with generator/UPS for VIP escort defense systems) c. System availability: ≥99.9% with stable long-term operation without performance degradation or faults d. Operating temperature: -35 ℃ ~ +50 ℃ (built-in independent heat sink) e. Product dimension: 720 mm × 720 mm × 420 mm f. Weight: ≤20.0 kg g. Ingress protection rating: IP66

The platform acts as a central hub for multi-sensor data exchange and multi-node sharing. Distributed multi-center resource sharing enables interconnection and data synchronization across all nodes, supporting storage, management and analysis of multi-sensor data within regional coverage. It complements on-site personnel monitoring to realize joint human-machine defense. Front-end data can be processed and uploaded via dedicated 4G workstations to the cloud for mobile remote control, convenient for field operation.

Figure 4 Diagram of Unified Low-Altitude Network Linkage System

The intelligent low-altitude drone control system adopts B/S architecture, integrating multi-scenario data to deliver integrated drone monitoring, early warning and countermeasure services, supporting real-time supervision of up to millions of connected units.

Platform Core Functions

1.Visual Monitoring Continuously tracks drone coordinates to generate high-precision flight tracks. Automatically guides optoelectronic tracking turrets via high-accuracy positioning to lock targets and stream real-time aerial footage for visual monitoring of drones and payloads.

2.Data & Information Management Analyzes all detection, identification and suppression data to generate comprehensive air situation diagrams. Formulates response plans based on air threats and device characteristics to block low-altitude intrusions. Sends intrusion alerts and dynamic updates to monitoring centers, terminals, portable units and external interconnected systems.

3.Device Access Management Supports registration of fixed and portable units via all network channels; displays online/offline/standby/power-off/fault status of all connected devices; coordinates collaborative operation of all units; supports remote firmware upgrade and equipment maintenance.

4.Detection & Early Warning Accepts all detection signal input, compares real-time spectrum data with the drone feature library to identify drone brand, model and unique serial number for identity confirmation. All-time all-weather risk grading, simultaneous multi-target detection, multi-dimensional voice & light alarms for illegal intrusions.

5.Precise Positioning Locates drones compliant with O2/O3/O4 protocols, displaying real-time longitude/latitude, azimuth and distance relative to the unit, covering over 98% consumer drones on the market. Locates remote controllers (operators) with real-time coordinates, azimuth and distance, plus one-click navigation function.

6.Intelligent Target Suppression Automatically selects optimal countermeasure strategies based on threat level and environment. Suppresses control, video and navigation signals to cut remote access and force return or landing. AI analyzes flight intent to assess hazard severity, establishing layered defense zones (warning zone, countermeasure zone, core restricted zone) with graded interception rules.

7.User Permission Management Three-tier access control:

· Test account: Full system configuration authority for technical debugging

· Duty account: Standard operation authority for monitoring staff

· View-only account: Read-only access without operation rights

8.Log Query & Playback Retrieves historical intrusion records including frequency, bandwidth, RSSI, drone model and intrusion time via multi-condition filtering; generates statistical charts for visual analysis.

9.Strategy Configuration Customizable preset rules for warning range, defense boundary, disposal modes, linkage logic and suppression schemes; dynamic remote adjustment of unit parameters, configurable jamming duration and schedules, four adjustable detection sensitivity levels (Low, Medium, Medium-High, High).

10. Blacklist & Whitelist One-click tagging for trusted/forbidden drones; whitelisted legal drones trigger no system alarms.

11.Audio & Visual Alarms Built-in voice broadcast and indicator light alert functions.

12.High-Definition GIS Map B/S architecture supports high-definition GIS maps with three switchable modes: electronic map, satellite map and offline map, clearly displaying terrain and equipment deployment points.

13.Unattended Operation Two working modes available: unattended mode (automatic suppression priority with manual intervention backup) and manned mode (manual control for optimal disposal results).

14.Statistical Reporting Generates logs and statistical charts recording drone intrusion time, alarm events, remote control frequency and jamming activation records.

Table 2 Standard Configuration List of SX-F302 Enhanced Detection & Countermeasure drone Defense System

· Delivery Cycle: 15 working days upon official order (excluding weekends and holidays)

· Delivery Process: All units undergo full factory testing; delivery is arranged only after passing inspection

· Delivery Method: Express shipping or on-site handover
