Product Description

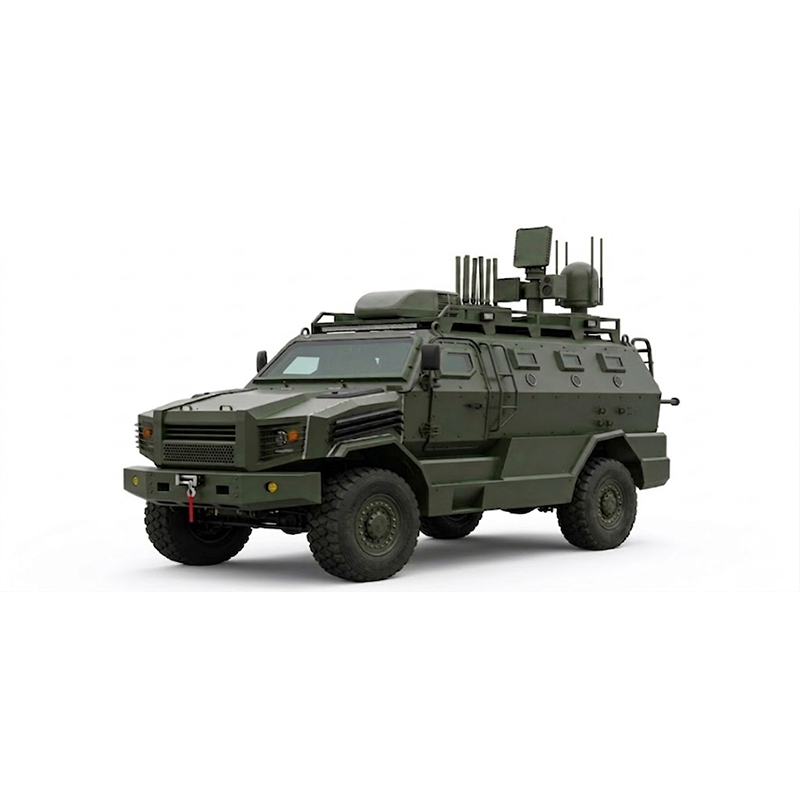

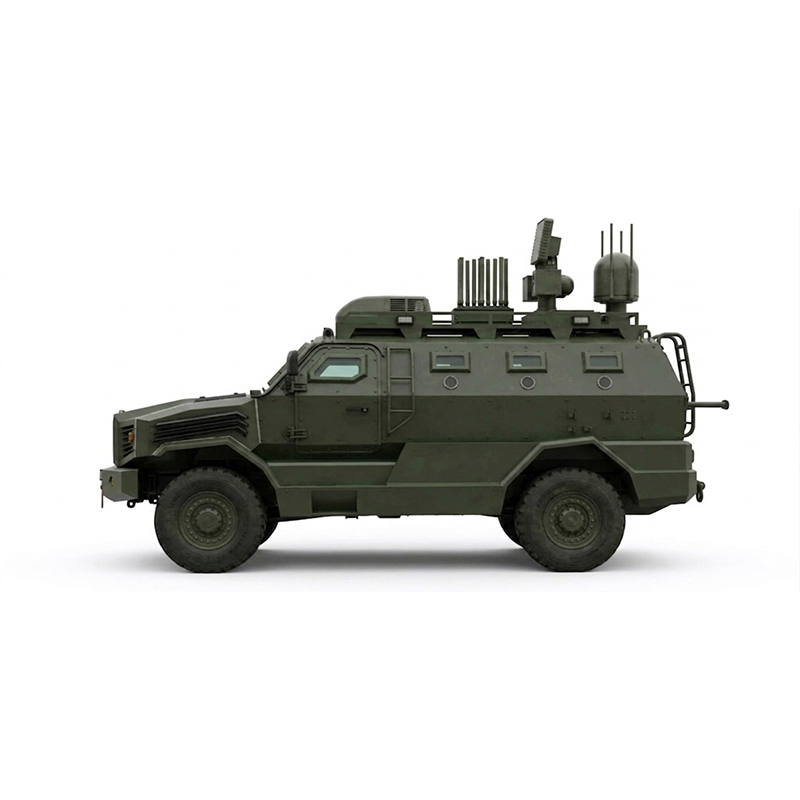

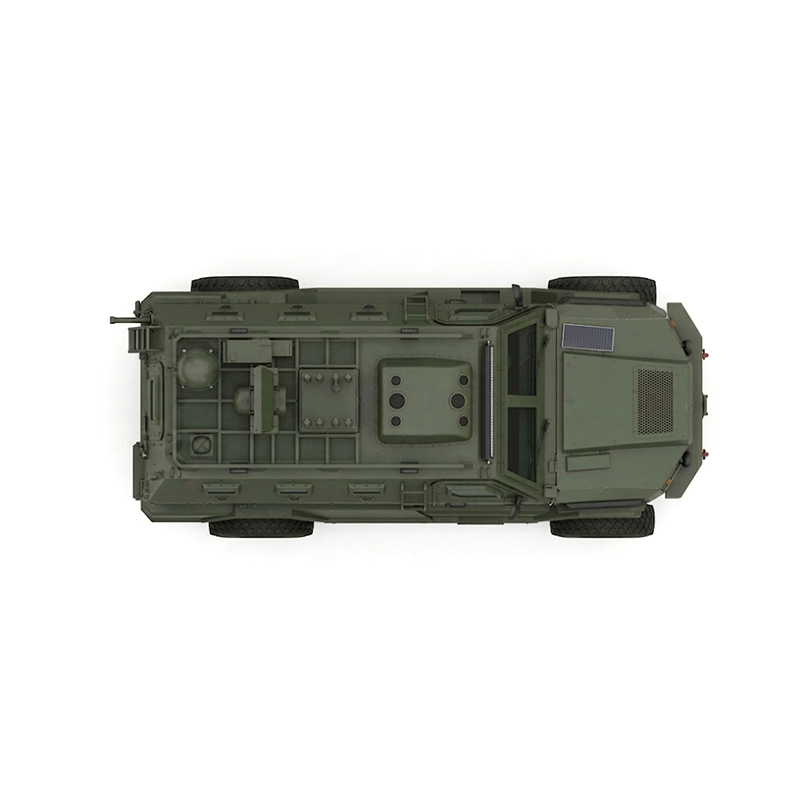

Deep Custom Refitting: Built on the mature chassis, comprehensively refitted integrated with phased array radar developed by Seaward X Technology.
Multi-Functional Integration: Combines premium anti-drone performance, bulletproof & mine blast protection, and full-terrain off-road mobility all in one vehicle platform.
Extreme Environment Adaptation: Developed for complex road conditions and harsh environments including deserts, mountainous areas, high-altitude and frigid cold regions.
Global Market Compatibility: Optimized for overseas markets such as Africa, the Middle East, Southeast Asia and South America, delivering stable operation under local working conditions.

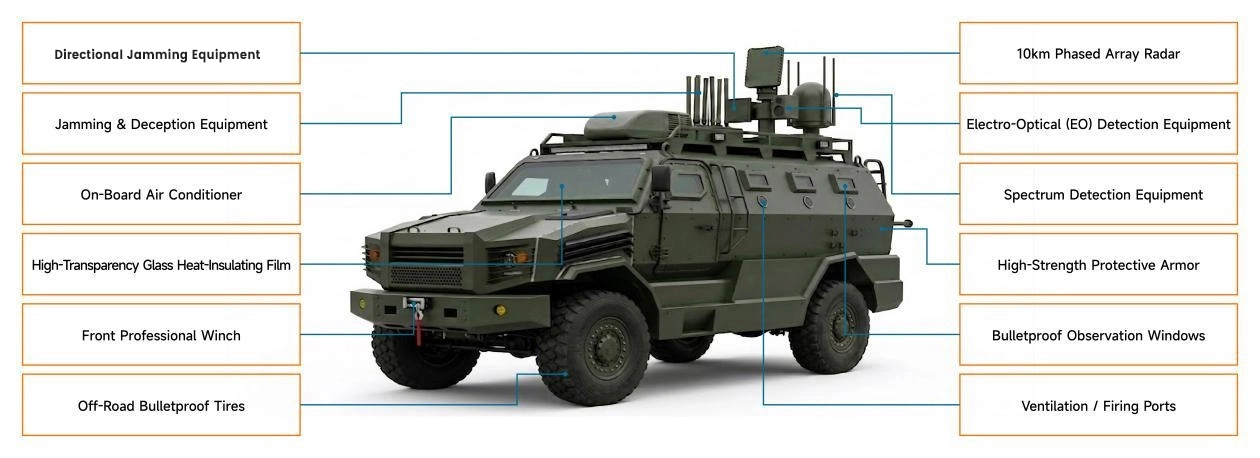

Detection & Tracking Subsystem
◉ 10km-Range Phased Array Radar
◉ Optoelectronic Detection Equipment
◉ Spectrum Monitoring Equipment
◉ Infrared Detection Equipment
Countermeasure & Jamming Subsystem
◉ Signal Jamming & Navigation Spoofing Devices
◉ Drone Hard-Kill Strike Equipment
Vehicle Body Protection
◉ High-Strength Protective Armor Plates
◉ Off-Road Bulletproof Tires
◉ Heavy-Duty Front Winch
Comfort Environment Subsystem
◉ Vehicle-Mounted Air Conditioner
◉ Bulletproof Observation Windows
◉ High-Transmittance Heat Insulating Film
Combat Coordination Subsystem
◉ Ventilation / Firing Ports
◉ Automatic Transmission Shifting System
Command Integration Subsystem
◉ Cloud Platform Management System
◉ Beidou Positioning Recorder
Performance Item | Specification |
Engine | ISDe 330 High-Pressure Common Rail Diesel Engine |
Gearbox | Allison 3000P Automatic Transmission |
Drive Format | 4×4 Four-Wheel Drive |
Gross Vehicle Weight | ≥12,000 kg |
Curb / Payload Weight | Curb weight ＜10,000 kg; Payload ≥2,000 kg |
Overall External Dimensions | ≤6000 × 2500 × 2700 (mm) |
Wheelbase / Track Width | Wheelbase 3800 mm; Track width 2150 mm |
Mobility Item | Index Value | Environmental Adaptability Item | Index Value |
Maximum Speed | ≥130 km/h | Operating Temperature | -20 ℃ ~ +55 ℃ |
Maximum Gradient Climbing Capacity | ≥60% (31°) | Wading Depth | ≥1200 mm |
Vertical Obstacle Crossing Height | ≥450 mm | Trench Crossing Width | ≥800 mm |
Turning Radius | ＜9 m | Highway Cruising Range | ≥650 km |
Approach / Departure Angle | ≥52° / 38° | Rated Passenger Capacity | 2 + 2 Persons |
Ballistic Bulletproof Protection
◉ Five-sided bulletproof protection for crew cabin, compliant with NATO STANAG 4569 Level 1 standard.
◉ Resists close-range shooting of M80 / M193 / SS109 ammunition at a distance of 30 meters.
◉ Multiple bulletproof observation windows and 6 tactical firing ports equipped on vehicle body.
Mine Blast Protection
◉ Provides protection against 6kg TNT equivalent blast load, compliant with NATO STANAG 2b mine resistance standard.
◉ Special V-shaped hull design effectively disperses blast shockwaves.
◉ Reinforced protection on key components to fully defend against landmine and IED threats.
