Product Description
Main System Composition

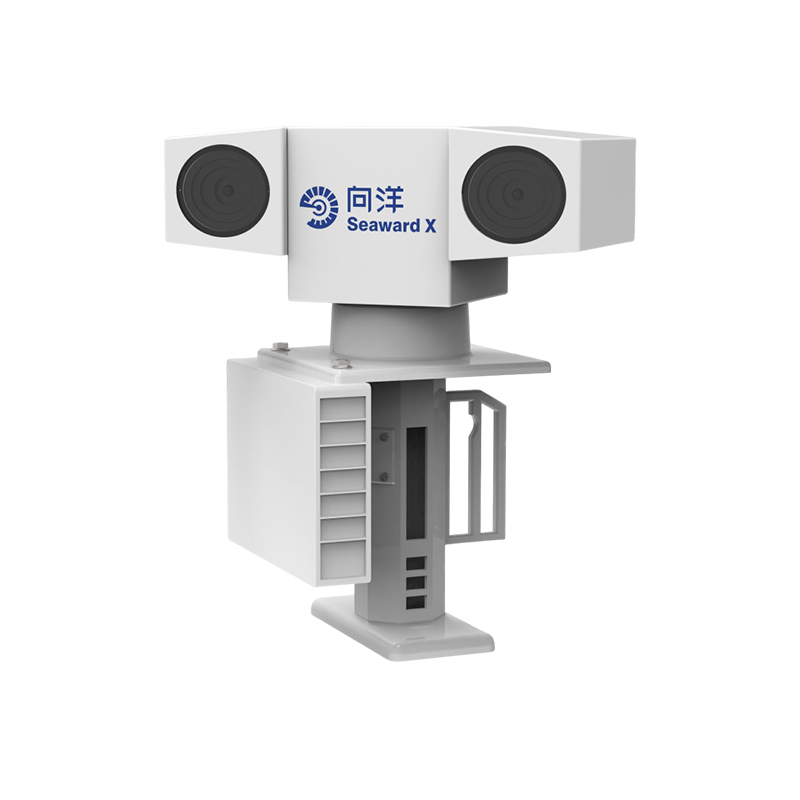

Phased Array Radar | Dual-spectrum Camera | Interconnection Box | Display Terminal Software
Item | Specification |
Phased Array Radar Dimension | 320mm × 235mm × 54mm |
Dual-spectrum Camera Dimension | 332mm × 182mm × 222mm (excluding cable outlet) |
Interconnection Box Dimension | 138mm × 85mm × 33mm |
Operating Frequency | K-band |
Azimuth Scanning Range | ±45° |
Detection Range | ≥1.2km (pedestrians)≥2km (vehicles) |
Detection Accuracy (RMS) | ≤4m (range accuracy)≤0.3° (azimuth accuracy) |
Max. Simultaneous Target Tracking | ≥100 targets |
Detectable Speed Range | 0.3m/s ~ 40m/s |
Communication Interface | 1× Gigabit Ethernet |
Ingress Protection Grade | IP67 |
Operating Temperature | -40℃ ~ +55℃ |
Power Consumption | ≤95W |
Total Weight | 12.2kg |
The supporting terminal software is compatible with high-resolution split-screen monitors for clear display of all monitoring zones. With intelligent layout function, it supports large-screen expansion and customized display layout as required.
