| Quantity: | |
|---|---|
Product Description
Parameter | Specification |
Detection Range | ≥5 km (varies with environment) |
Detection Frequency Bands | Dual-band: 2.4 GHz / 5.8 GHz |
National Standard Compliance | Compliant with GB 42590-2023, GB 46750-2025 |
Power Supply Options | Solar power (built-in lithium battery), DC power, POE power supply |
Network Support | 4G LTE |
Ingress Protection Rating | IP65 |
Data Traffic Package | 300 MB per month, 5-year data traffic included with the device |
Communication Protocol | MQTT |
Operating Temperature | (To be supplemented) |
This device supports solar and PoE power supply. It can real-time receive Remote ID signals from mainstream drone brands including DJI and Autel. With a single-unit detection range of ≥5 km in suburban environments, it accurately identifies drone model, location and pilot information. It enables remote monitoring via 4G cellular network or customized interfaces, effectively countering illegal rogue dorne flights and other low-altitude security risks, and filling coverage blind spots of existing detection systems in key zones.
1. Install the device, connect the power cable and press the power switch; the LED indicator will light up.
2. The device automatically registers to and connects with the cloud platform.

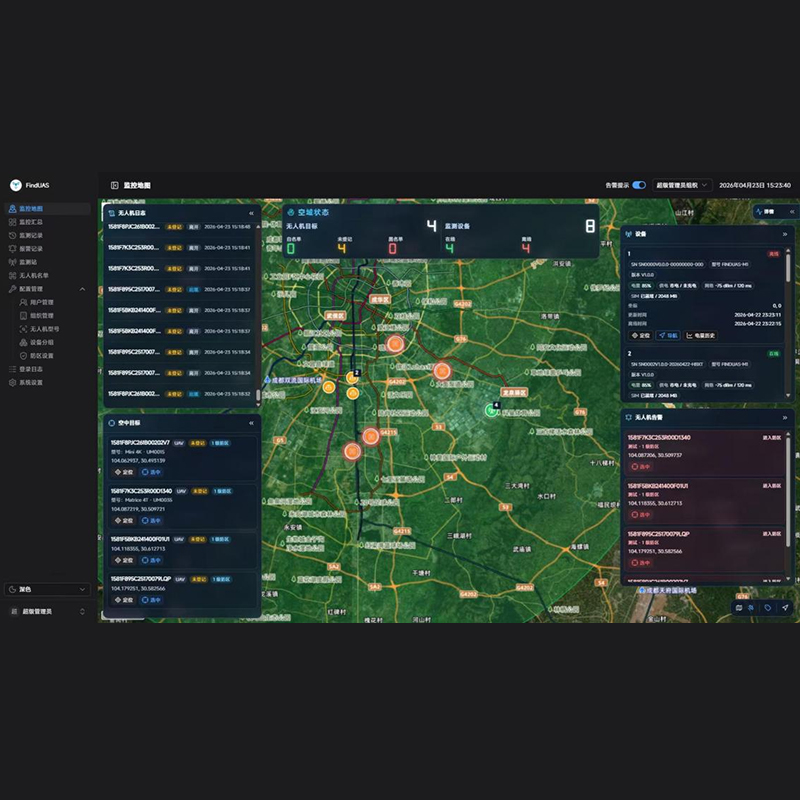

3. Log in to the platform to enter real-time monitoring mode.
Mobile patrol missions: Outdoor law enforcement for public security, border defense, urban management departments, etc.
Temporary deployment: Security protection for major events, VIP security escort, etc.

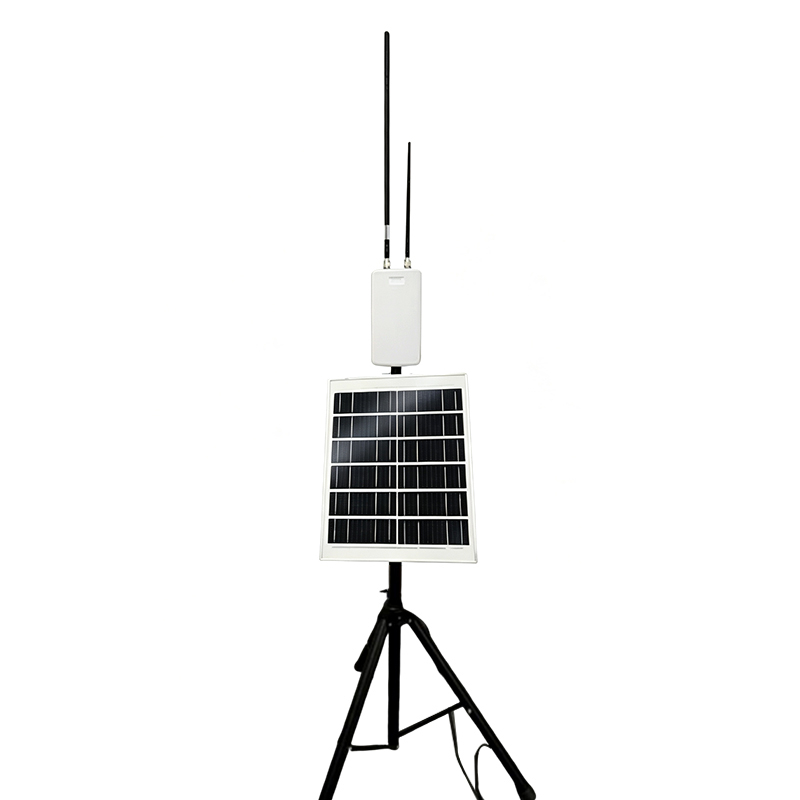

· Optional solar panel module
· Intelligent alarm & remote management
Category | Items |
Standard Accessories | 2.4 GHz fiberglass antenna5.8 GHz fiberglass antennaInstallation hardware kit |
Optional Accessories | (To be supplemented) |
