Product Description

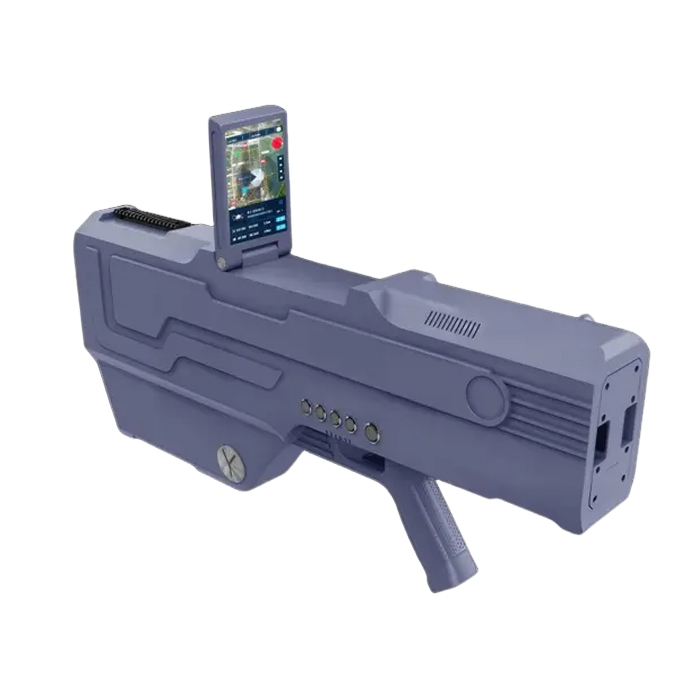

Featuring lightweight portability, powerful jamming performance and precise target positioning, the SX-F301 is widely applied to low-altitude security protection across multiple sectors:
1. Military & Police It reduces individual soldier load during field military operations. For public security law enforcement, it can detect and jam illegal drones in advance to guarantee smooth mission execution and regional low-altitude safety.
2. Urban & Critical Infrastructure Protection For restricted areas including government compounds, airports, subways and public venues, it blocks unauthorized drone intrusion to eliminate potential safety hazards and ensure stable operation of key facilities.
3. Security for Large-Scale Events For crowded scenarios such as government conferences, music festivals and sports tournaments, it rapidly identifies and neutralizes drone threats to maintain event order and personnel safety.
4. Special Site Management For prisons, it prevents contraband delivery via external drones and maintains prison management order.
No. | Item | Configuration | Function Description |
1 | — | — | — |
2 | Integrated Main Unit | Standard | All-in-one unit integrating detection, jamming, display and control functions with no exposed cables |
4 | Spare Battery | Optional | Power backup for extended operation |
— | Quick-Detach Shoulder Strap | Standard | Fast detachable with adjustable length, switchable between handheld and shoulder-worn modes for enhanced portability |
— | Telescope | Optional | Auxiliary visual observation of aerial targets |
8 | Auxiliary Accessory | Optional | Custom expandable accessory |

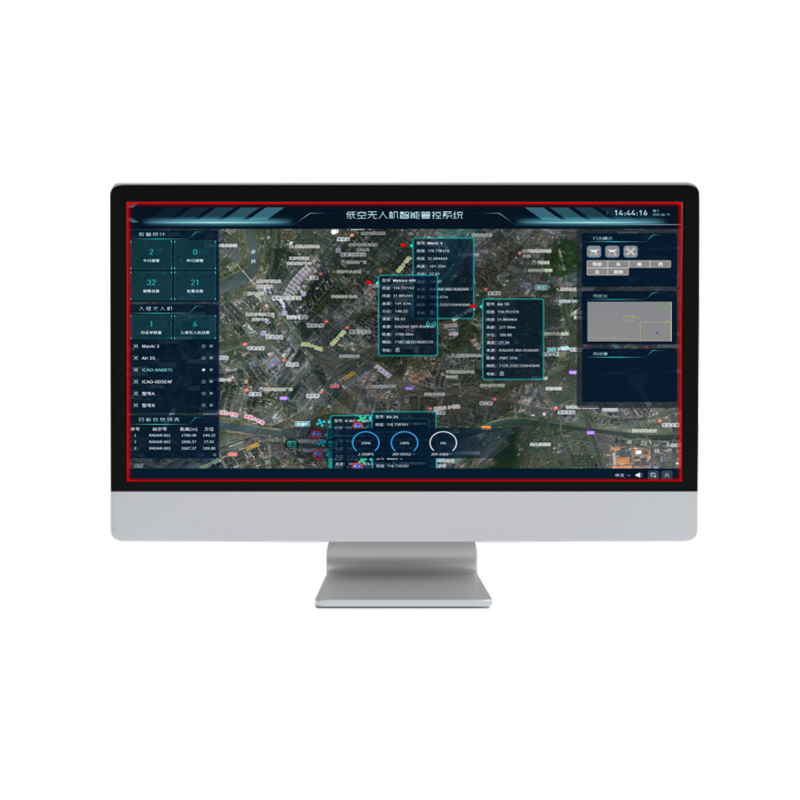

1. System-level intelligent collaborative management & control
2. Intuitive operability
3. Real-time detection and early warning
Category | Parameter Details |
Full Frequency Coverage | Covers all drone communication bands from 300 MHz to 6000 MHz; Customizable bands: 1.5 GHz / 5.2 GHz |
Key Working Bands | 5150–5275 MHz1550–1610 MHzISM 2400 MHzISM 900 MHzISM 5800 MHz |
Transmit Power | ≥40 dBm for each main ISM band |
Pitch Coverage | -60° ~ +60° |
Operating Power Consumption | Reserved |
Charging Method | Reserved |
Overall Dimension | 680 mm (L) × 275 mm (W) × 79 mm (H) |
Charger Dimension | 168 mm (L) × 63 mm (W) × 37 mm (H) |
Total Weight | ≤500 g |
Protection Rating | IP65 (Dustproof & Splash-proof) |
Operating Temperature | -20 °C ~ +50 °C; Core components withstand -20 °C ~ +70 °C |
Antenna Parameters | Vertical polarization; Horizontal beamwidth: 130°, Vertical beamwidth: 55°, Antenna gain: 9 dBi |
