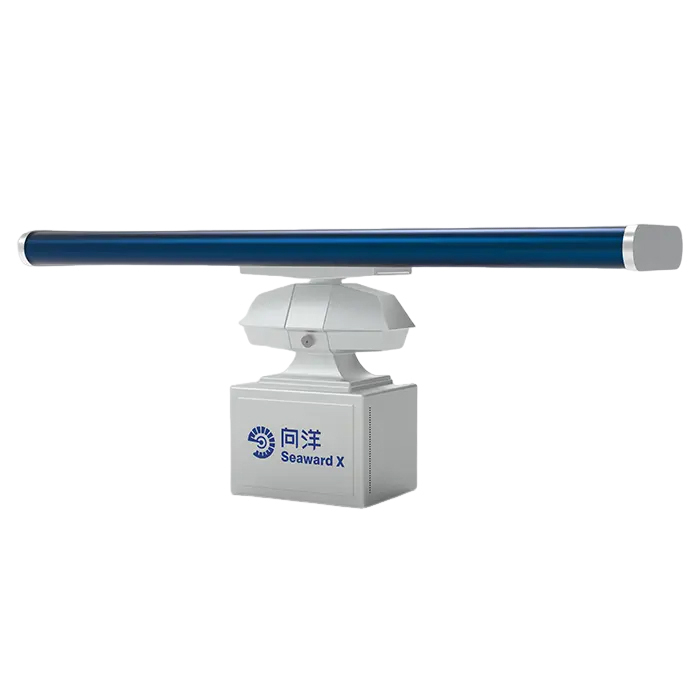

Product Description
1) provide two-coordinate information of target
2) Azimuth scanning adopts mechanical rotation and can cover 360 ° azimuth
3) The system has strong anti-interference ability by adopting all-solid-state transceiver and all-phase pulse Doppler processing technology
4) Support AIS target fusion display
5) It has the ability of automatic/manual suppression of sea wave, rain and snow clutter and the ability to suppress the same frequency asynchronous interference
6) It has the functions of system self-check and fault location, and can locate to the smallest replacement unit.
Antenna type | Slotted waveguide antenna |
Antenna length | 2.1m |
Operating frequency band | X-band |
Transmitting power | ≥150W |
Antenna speed | 24rpm |
Operating Range | (Discovery probability Pd ≥ 0.85, false alarm probability Pf ≤ 10-6) |
For RCS = 1000m2 ship at sea | R ≥ 60km (radar mounting height is more than 150m) (50 meters or so thousand tons ship) |
For RCS = 100m2 | R ≥ 30 km (radar mounting height is more than 50 m) (20 meters or so iron hulled ship) |
For RCS = 5m2 | R ≥ 15km (radar mounting height is more than 20m) (10 meters or so iron hulled ship) |
Echo resolution | Distance: ≤ 10 m |
Azimuth: ≤ 1.2 ° | |
Target detection accuracy | Distance: ≤ 10 m |
Azimuth: ≤ 0.5 ° | |
Power supply | Frequency: 50Hz ± 10% |
Voltage: 50Hz ± 10% | |
Power: ≤ 300W (the total power about 600W after including the distribution lightning protection cabinet) | |
Environmental conditions | Working temperature: -25 ℃ ~ + 55 ℃ |
Storage temperature: -30 ℃ ~ + 70 ℃ | |
Relative humidity: 95% (+ 40 ℃) | |
Waterproof performance: IP65 |
