Product Description

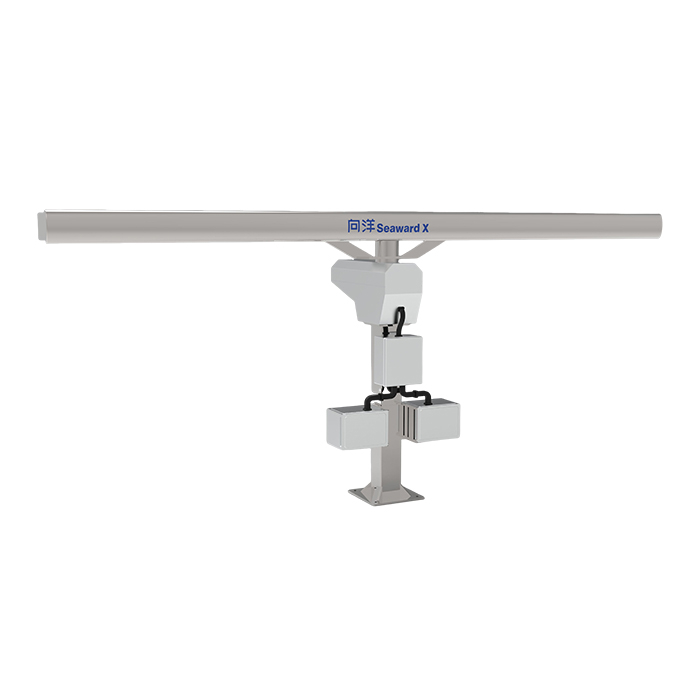

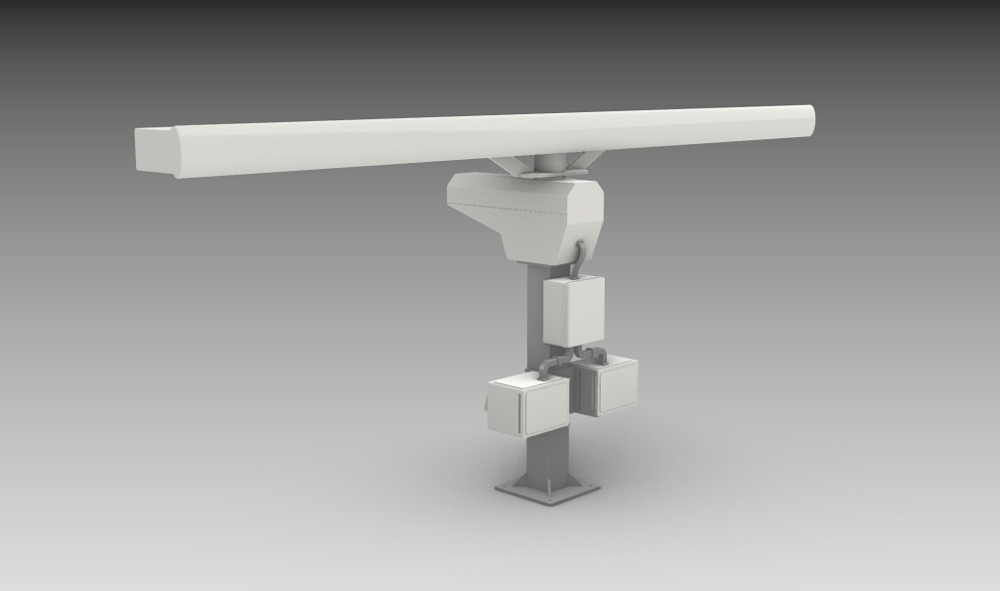

The VTS radar is designed to detect and track surface vessels and low-altitude flying targets within the reconnaissance and surveillance coverage area, and measure target parameters including range, azimuth and velocity. It delivers all-weather monitoring of vessels, fixed objects and low-altitude aircraft in jurisdictional waters or waterways. The system can detect and track maritime and low-altitude targets, generate target plots and track data, output real-time target position information, and transmit such data to display control terminals or supervision platforms via network interfaces.
The radar system consists of five core subsystems: antenna unit, turntable unit, power feeding distribution unit, transceiver unit and control terminal.
1. The antenna unit comprises radome, slotted waveguide, feed lines and other components.
2. The turntable unit is composed of support frame, servo system and associated assemblies.
3. The power feeding distribution unit includes power feed distribution network and dual-unit control circuit.
4. The transceiver unit integrates transmitter, low-noise amplifier (LNA), receiver, frequency source, signal processor, data processor, network equipment and other modules.
5. The control terminal is made up of control computer and network switching devices. Network communication is adopted for data transmission between the radar main unit and control terminal.
The radar supports access to external sensors such as AIS for data fusion between radar tracks and AIS messages. Equipped with electronic chart functions and standard network interfaces, it uploads radar tracking data to the supervision platform to build an integrated regional intelligence situation picture. It provides accurate, intuitive and reliable intelligence support for target detection, identification, tracking, disposal and evidence collection of vessels within the jurisdiction. The system enables continuous tracking and comprehensive monitoring of moving targets including ships and low-altitude UAVs, greatly improving the persistent surveillance capability for maritime vessels.
1. Antenna Unit
2. Processing Unit
3. Turntable System
4. Control Terminal (Optional)
1. Solid-state pulse compression system
2. Outputs target parameters including latitude, longitude, moving speed, heading, range and detection time
3. Mechanical rotation azimuth scanning with full 360° azimuth coverage
4. Adopts solid-state transceiver and fully coherent pulse Doppler processing technology with strong anti-interference performance
5. Supports fused display of AIS targets
6. Automatic/manual suppression of sea clutter, rain and snow clutter, as well as suppression of co-frequency asynchronous interference
7. Built-in system self-test and fault location function, supporting fault localization down to Line Replaceable Unit (LRU)
8. Remote control functions: remote parameter configuration, remote power on/off, etc.
9. Supports multiple blind zones to effectively filter sensitive and unnecessary observation areas
10.Supports multiple tracking zones; radar observation range can be adjusted according to actual requirements
1. Antenna Type: Slotted waveguide antenna
2. Operating Frequency: X-band
3. Polarization: Horizontal polarization
4. Antenna Length: ≥18 ft
5. Transmit Power: ≥150 W
6. Sum Beam Gain: ≥35 dBi
7. Horizontal Beamwidth: ≤0.45°
8. Horizontal Sidelobe Level: ≤-25 dB (within ±10°), ≤-30 dB (outside ±10°)
9. Maximum Antenna Rotation Speed: 20 rpm
Conditions: Probability of Detection Pd ≥0.85, Probability of False Alarm Pf ≤10⁻⁶, Rotation Speed = 20 rpm
· For maritime vessels with RCS of 1000 m²: Detection Range R ≥60 km (radar installation height above 150 m)
· For maritime vessels with RCS of 100 m²: Detection Range R ≥40 km (radar installation height above 100 m)
· For maritime vessels with RCS of 5 m²: Detection Range R ≥20 km (radar installation height above 25 m)
Minimum Detection Range: ≤50 m
Resolution:
· Range Resolution: ≤10 m
· Azimuth Resolution: ≤0.45°
Detection Accuracy:
· Range Accuracy: ≤10 m
· Azimuth Accuracy: ≤0.15°
Data Processing:
· Target Extraction Mode: Automatic + Manual
· Maximum Number of Locked & Tracked Targets: ≥1000 batches (customizable via software)
1. Voltage: 3-phase 380 V, 50 Hz
2. Total Power Consumption: ≤2500 W
1. Operating Temperature: -25 ℃ ~ +50 ℃
2. Storage Temperature: -30 ℃ ~ +60 ℃
3. Relative Humidity: 95% RH (@ +30 ℃)
4. Waterproof Rating: IPX6
