Product Description

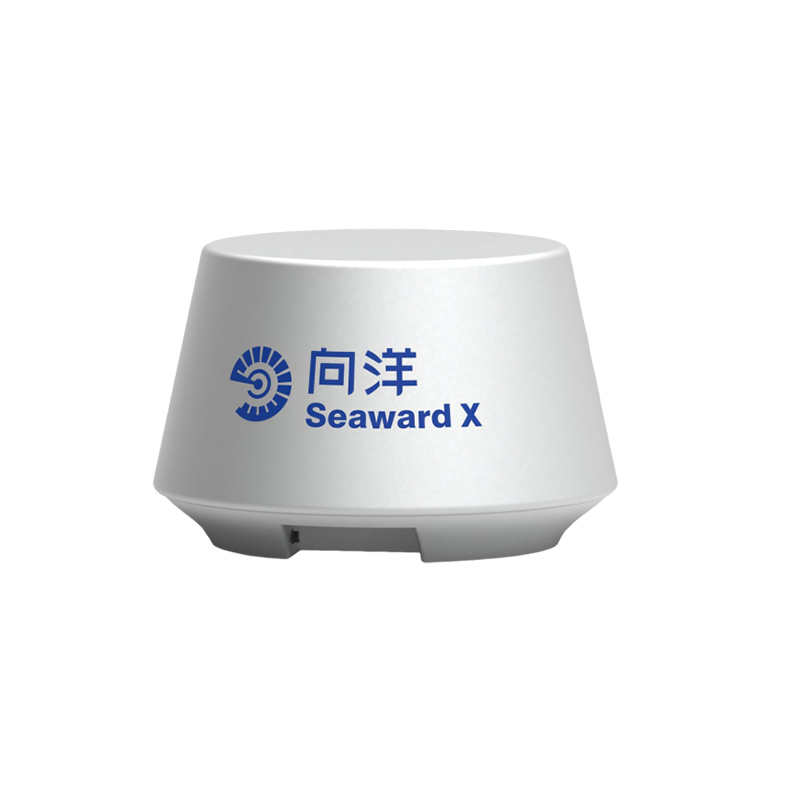

Seaward X Tech Self-Developed Marine Dish Radar This fully integrated solid-state navigation radar system features maintenance-free operation and simplified installation.With a 36-nautical-mile maximum range delivering crisp target imaging and ultra-low 40W power consumption, it stands as the premier choice for maritime vessels. Its mechanical-free housing eliminates proximity hazards, while infrared wireless data transmission ensures long-term reliability.Primary applications include yachts, fishing vessels, and seafaring craft.
Feature
1. Solid-State Architecture: Instant operation with zero warm-up
2. 200-Target Tracking:Simultaneous tracking and recording of 20o objects
3. Adaptive Guard Zones: Manual/auto-configurable threat-alert sectors for omnidirectional
protection
4. Non-Ionizing RF Emission: Safe human proximity with unrestricted mounting flexibility
5. Advanced Signal Processing: Industry-leading sea clutter and precipitation rejection maintains
target integrity in degraded visibility
Comparison Table: Seaward SX-1311 Solid-State Radar vs Traditional Magnetron Radar
Features | Seaward SX-1311 Solid-State Radar | Traditional Magnetron Radar |
Power Efficiency | Low watt-level input but high efficiency | High kilowatt-level input yet low efficiency |
Service Life & Reliability | Long service life ≥100,000 hours for solid-state components | Limited lifespan ~8,000 working hours for magnetron tubes |
Startup Time | Instant startup at millisecond level | Preheating required from seconds to minutes |
Frequency Stability | Excellent | Poor; manual frequency adjustment needed |
Dimension & Weight | Compact & lightweight for miniaturization design | Bulky with built-in high-voltage assemblies |
Maintenance Requirement | Virtually maintenance-free | Periodic magnetron tube replacement required |
Cost | Higher initial cost, lower long-term OPEX | Lower upfront cost, high ongoing maintenance cost |
Item | Spec |
Safety Design | Contact-free moving parts; safe human access under regular operation |
Operating Temp. | -25℃ ~ +55℃ |
Relative Humidity | +35℃, up to 95% RH |
Ingress Protection | IPX6 |
Wind Resistance | ≤5m/s |
Power Consumption | ≤40W |
DC Input | DC9V ~ DC32V |
Startup Preparation | Instant power-on launch with solid-state transmitter |
Outer Dimension | H345mm × Φ540mm |
Weight | ≤10kg |
Item | Spec |
Transmitter | All solid state |
Transmit Power | 200mW |
Polarization | Horizontal |
Horizontal Beam Width | 4.8°±10% |
Vertical Beam Width | 21.5°±10% |
Side Lobe Level | ≤-15dB (within ±10°) |
Noise Figure | ≤6dB |
Main Lobe Blind Zone | ≤10m |
Sea Clutter Suppression | 3~5× better than magnetron radar |
Detect Range | 50m ~ 36nm (adjustable by mode) |
Scan Repetition | 200~540Hz |
Scan Period | 1.1ms±10% |
Antenna Rotation Speed | 24rpm |
Operating Frequency | 9330MHz ±50MHz |
Max Receive Bandwidth | 75MHz |
Communication Protocol | High-speed Ethernet (100BASE-T) |
