Product Description
Technical Features

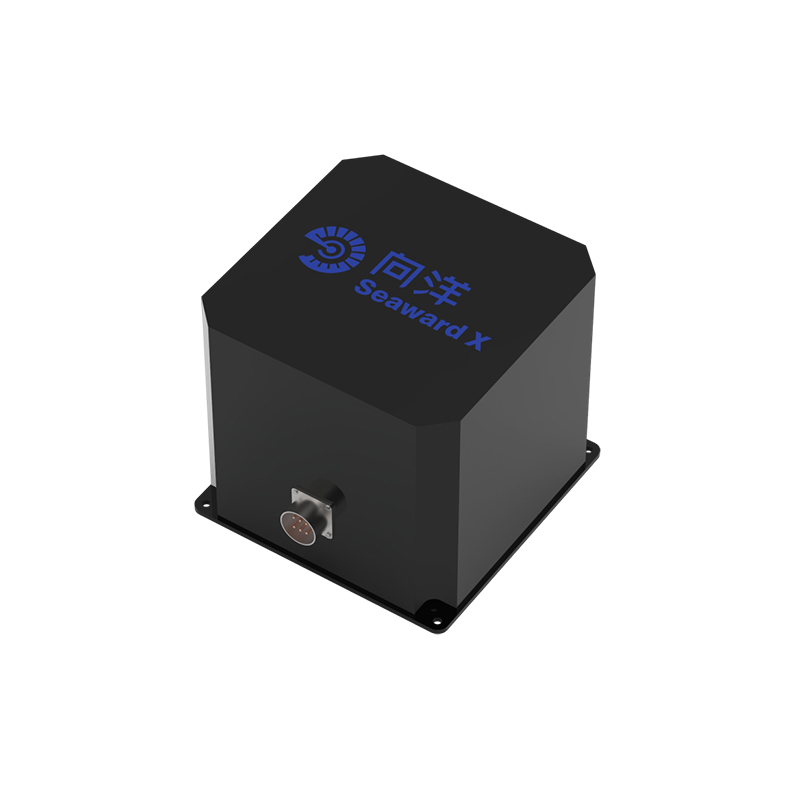

Composed of fiber optic gyro, accelerometer and a GNSS module, with strapdown design, free of rotating mechanical components parts.the product adopts strapdown design without rotating mechanical parts.
Item | Specification |
Heading Accuracy | Up to 0.1° secant latitude (gyro-only standalone mode) |
Heave Measurement Precision | 5 cm or 5‰ of measuring range, whichever is larger |
Data Output Rate | Configurable from 0.025 Hz to 200 Hz |
True North Calculation | Realized with auxiliary GNSS signals |
Domestic technical breakthrough: The fiber optic inertial navigation product developed by Harbin Navigation Technology completed industrial transformation in 2019, leading the ship-borne inertial navigation industry into the optoelectronic strapdown era.
Harbin Seaward Navigation Technology completed industrialization in 2019, leading the shipborne inertial navigation industry into the optoelectronic strapdown era.
Model | Rated Voltage | Precision | System Configuration | Protection Grade | Safety Distance | Static Error |
SINS-FOG-C001 | DC 24V | ≤0.75°/secΦ | Inertial Unit: SINS-FOG-C001Heading Control Unit: C001-DC/DC-2/DC-3 | IP65(Inertial) | Standard Gyro:105.2cm | Heading≤0.3° |
SINS-FOG-G001 | DC 24V | ≤0.5°/secΦ | Inertial Unit: SINS-FOG-Q001Heading Control Unit: C001-DC/DC-2/DC-3 | IP65(Inertial) | Standard Gyro:112.7cm | Heading≤0.02° |
SINS-FOG-H001 | DC 24V | ≤0.3°/secΦ | Inertial Unit: SINS-FOG-H001Heading Control Unit: C001-DC/DC-2/DC-3 | IP65(Inertial) | Standard Gyro:108.6cm | Heading≤0.02° |
SINS-FOG-M001 | DC 24V | ≤0.1°/secΦ | Inertial Unit: SINS-FOG-M001Heading Control Unit: C001-DC/DC-2/DC-3 | IP65(Inertial) | Standard Gyro:98cm | Heading≤0.05° |
Ship navigation, multibeam bathymetry, dredging, dynamic positioning, motion status monitoring, platform stability monitoring, and safe and reliable navigation. As of 2024, fiber optic compasses are mainly used in:
◉ Military applications: New types of warships for the People's Liberation Army Navy, 10,000-ton-class destroyers
◉ Polar research: The "Xuelong" research vessel
◉ Civilian applications: Dredging projects, platform stability monitoring
◉ Scientific research: Marine gravity field measurement, surveying (multibeam echo sounder/LIDAR), dredging, dynamic positioning, motion status monitoring, platform stability monitoring, and safe and reliable navigation, etc.
Terminal software supports high-resolution split-screen display with full-angle clear visualization. Intelligent software enables flexible layout configuration and large-screen display expansion as customized demands.
