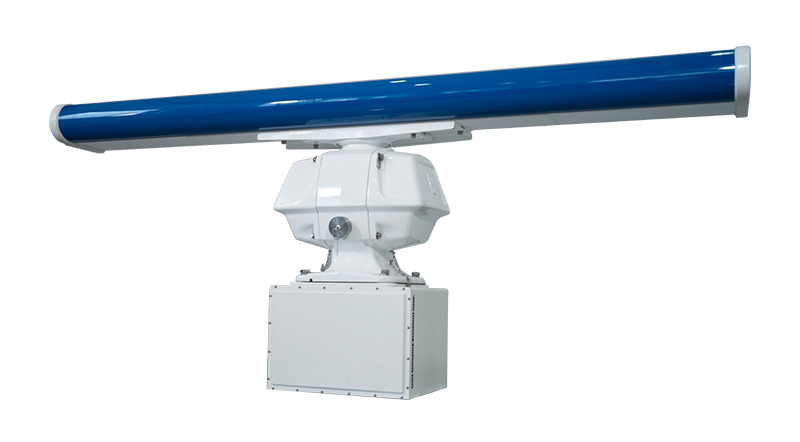

SX-3F11 Shore Based Water Surface Surveillance Radar

1. Key Performance

High precision detection capability

Adopting all solid state transceiver+fully coherent pulse Doppler technology, with high detection accuracy

Distance accuracy ≤ 10m, azimuth accuracy ≤ 0.5 °

Distance resolution ≤ 10m, azimuth resolution ≤ 1.2 °

360 ° mechanical scanning, covering the entire airspace in all directions

Low false alarm rate and strong anti-interference ability

Detection probability Pd ≥ 0.85, false alarm probability Pf ≤ 10 ⁻⁶

Support automatic/manual suppression of waves, rain and snow clutter

Capable of suppressing asynchronous interference on the same frequency and avoiding false alarms in complex sea conditions

Strong anti-interference ability, suitable for harsh electromagnetic environments

Running 24/7

Can work continuously 24/7, detecting day, night, rain, snow, and heavy fog normally

Protection level IP65, waterproof, dustproof, corrosion-resistant

Working temperature -25 ℃~+55 ℃, suitable for extreme weather conditions

System stability and intelligence

All solid state design, low failure rate, long lifespan, and strong stability

Equipped with system self-test and fault location, able to locate the smallest replaceable unit

Support AIS target fusion display, with more complete and reliable data

Automatically generate points and trajectories, and upload them to the supervision platform through the network

Extremely adaptable to the environment

Stable operation in environments with wide temperature, high humidity (95% humidity at 40 ℃), salt spray, and sea breeze

Outdoor scenes such as coastal areas, islands, ports, and docks can be directly set up

Low power design, with a total power output of ≤ 300W, easy to power and deploy

2.  Application advantages

1. Integrated sea air surveillance: Simultaneously detecting sea vessels and low altitude targets, with one radar for multiple purposes.

2. Long range coverage: For large ships, the farthest detection distance is ≥ 60km, and for small and medium-sized ships, it is 15-30km.

3. High reliability and low maintenance: Self check+fault location, simple operation and maintenance, long-term stability.

4. EasyLink NetEase Integration: Standard network interface that can directly interface with display and control terminals and regulatory platforms.

5. Strong universality of scenarios: Suitable for shore based water surface security scenarios such as port monitoring, waterway management, maritime supervision, nearshore security, and island surveillance.
